CD stud welding machine

Standard Series

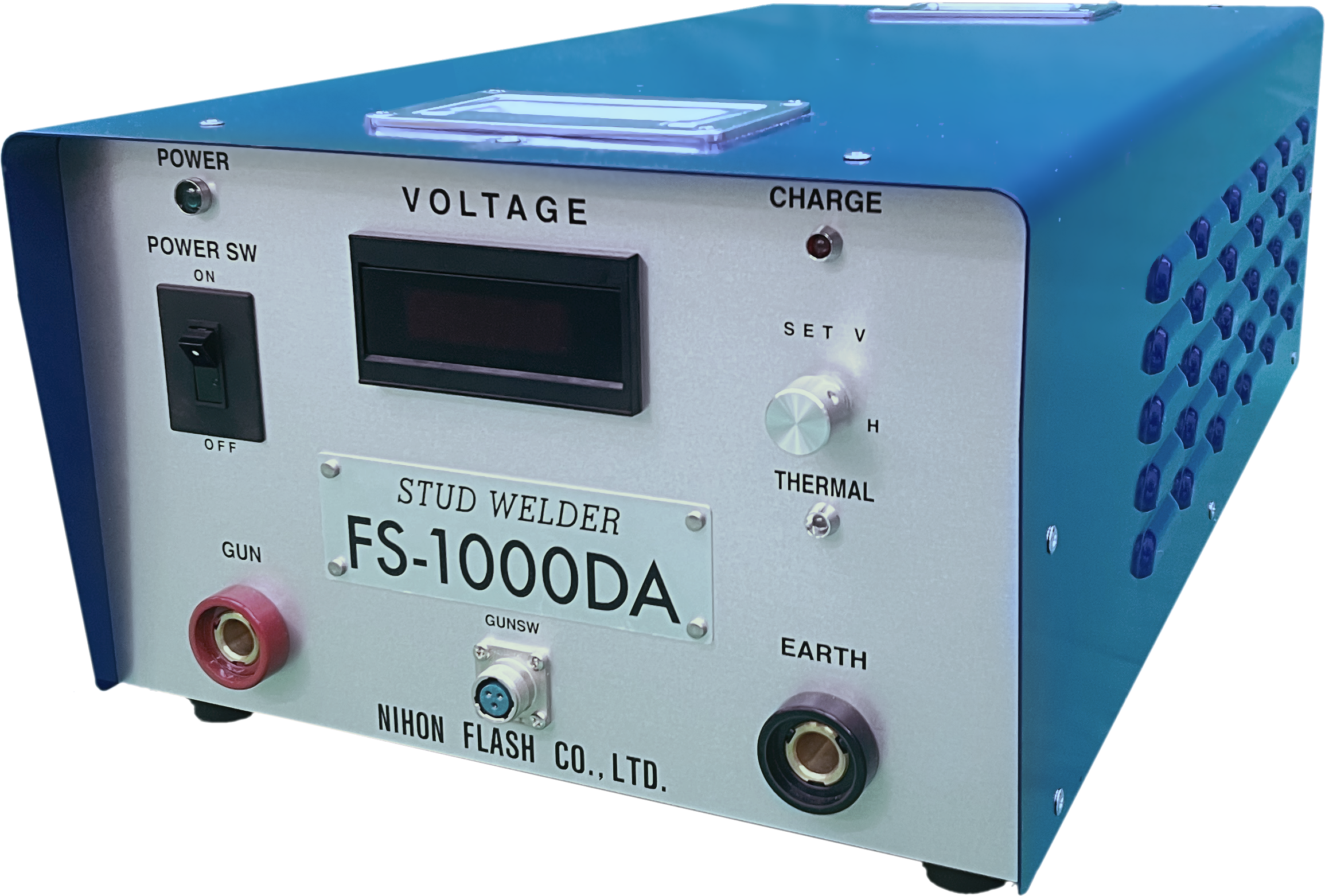

Standard Series<br />
  • This best-selling model can weld up to Φ10.
    The best-selling CD stud welder in Japan flash
    Best-selling balanced machine capable of welding diameters up to Φ10

    Suitable CD stud materials: iron, stainless steel

    Male thread M10 without flange (welding diameter up to Φ10)

    Female threads up to welding diameter Φ10 and outer diameter Φ16 (inner diameter M8)

    Female threads in iron are standard stock items.

    Female threads in stainless steel and aluminium are made-to-order.

    Aluminum stud bolts are manufactured up to M6.

    Aluminium stud bolts of M8 or more are not available.


  • Stable weldability

    Equipped with an auto-lock function that prevents welding even if the switch is pressed until the battery is charged to the set voltage, preventing defective welding due to insufficient charge and ensuring stable welding.


    Excellent operability

    The FVC (Flash Voltage Control) function allows the voltage to be controlled up and down without switching off the power.

    Easy operation

    CD stud welding does not require welding gas or solvents, making it easy for anyone to weld.




  • New stud gun SGN gun adopted

    The ergonomic grip is lightweight and easy for anyone to handle.


    Positioning jigs can also be used.



  • Maximum voltage



    Charging time

    Approx. 6 seconds up to 200 V



    H222 x W334 x D615 mm

    Main unit weight



    Capacitor capacity

    200V 216000μF


  • accessory

    The set includes all the necessary items for CD stud welding. Welding can be carried out immediately if CD stud bolts are prepared.

    stud gun

    SGN22 Cable 22sq-6m


    22sq-2-over-2 cable 3m x 2


    power cable

    1.25sq 3c-5m



    tool set

    Hexagonal spanner Dedicated spanner Pressure gauge Tool box

    Tip parts

    Chuck M3 to M10, φ6 to φ10, 1 each


    Holder Stopper Stopper for hook nut
